Highlight:

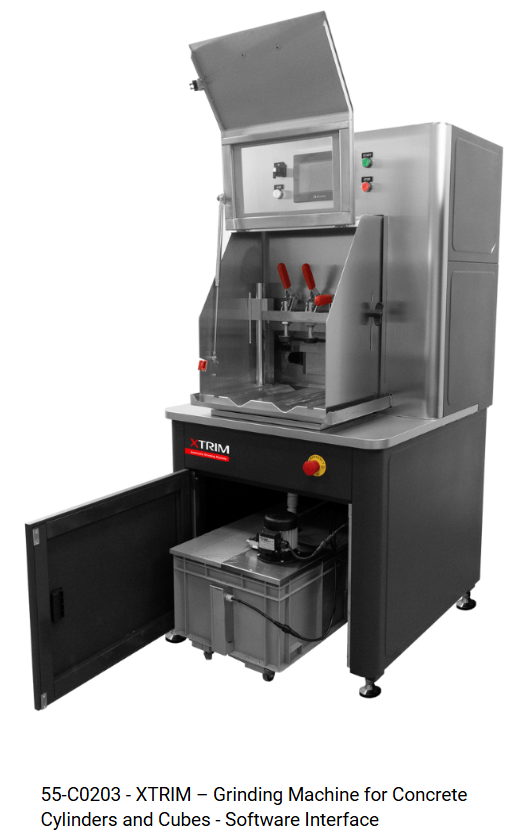

XTRIM – Fully Automatic Grinding Machine for High-Precision Concrete Sample Preparation

Designed for demanding laboratory environments,XTRIMis our fully automatic grinding machine that ensureshigh reproducibilityandminimal operator effort. With itsautomated grinding cycles, multiple specimens can be processed simultaneously, significantly increasing efficiency without compromising on precision.

The intuitiveLCD touchscreen interface, powered by advanced firmware, allows users to select from5 pre-set programstailored to different sample shapes and sizes. For more specific needs, acustom modeis available, enabling full control over grinding parameters to adapt to variousconcrete strength levels.

XTRIMis a fully-automatic machine with the possibility to pre-set not only thegrinding speed and the grinding deepbut also thetiming of polishingfor a perfect finishing of sample surfaces.

It features anenclosed structurethat not only improves operator safety but alsoreduces dust dispersionandlowers noise levels, creating a cleaner and quieter working environment, ideal forrigorous Quality Control applications.

The integratedwater recirculation system, equipped with a pump and tank, eliminates the need for a direct water supply, ensuringflexible installationin any laboratory setting.

Features:

High-Capacity & Versatility

• Suitable for cylinder and cubes. The std configuration is suitable for testing cylinders with a diameter from 100 mm to 160 mm and max length of 320mm.

• 3 cradles as option are available for: I) 5 cylinders dia. 38-50mm; II) 3 cylinders dia. 50-100mm; III) cubes 100m and 150mm side. Cradles are not included. They shall be ordered separately.

• N.2 lever clamps for samples locking are included. Based on selected cradles, additional lever clamps shall be ordered separately.

• N.5 pre-set programs coupled with customizable ones.

• Water-cooled diamond grinding wheel for precise finishing.

• Adjustable grinding parameters: wheel speed, lateral pass speed, carriage approach speed, finishing time.

• PLC-controlled grinding cycle with variable speeds for roughing and finishing.

Robust & Safe

• Fully enclosed system preventing dirt splashes and dust.

• Mechanical movement of the diamond disk and sample tray with minimal maintenance.

• Integrated water recirculation system, no need for external water supply.

• Compact design and safety lock system prevents door opening during operation.

For detailed specifications, please contact EPC!
