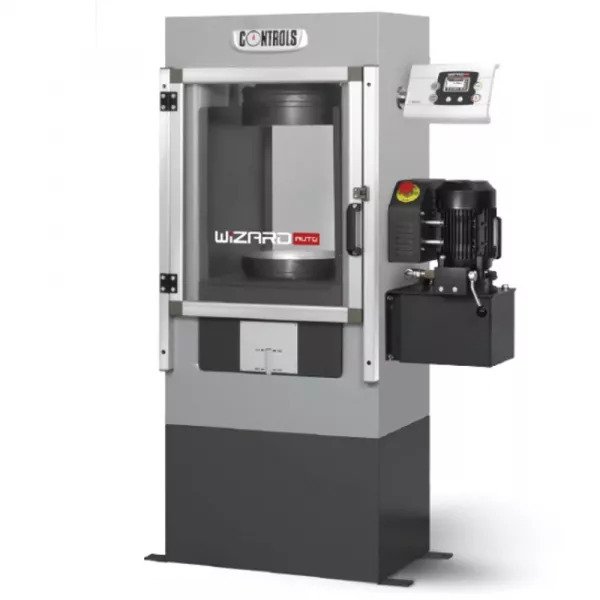

Description

Main features include:

• Two channels for load sensors
• Wide graphic display 128 x 80 pixel
• Graphic printer available as option
• AC motor fitted with VFD INVERTER device: high efficiency, low consumption, silent operation
• Dual stage pump for fast approach and automatic switch to high pressure for loading
• Second frame optional facility

Frame
Four column high stiffness welded frame tested for stability to EN 12390-4.
Heavy duty spherical seat in lubricating oil bath, allowing initial free alignment at the initial contact with the specimen and automatic jamming up to the end of test.

Compression platens
See table. Traceable certificate of surface hardness available on request.

Safety features
Includes: Max. pressure valve to avoid machine overloading; piston travel limit switch; emergency stop button; front door and rear transparent fragment guard.
